Connector database
Below, a database that will hopefully build up into a useful list of connectors. Note that links here are not endorsements, but samples where you might be able to buy, or find more information in order to help you find the right part at your favourite local dealer.
There’s also a handy list of potentially-printable connectors here, along with some accessories (eg caps, shells).
Connectors
Section titled “Connectors”| Description | Sample |
|---|---|
 |
Part Number: Deutsch/Durite 001142 Typical usage: steering valves on Case/NH https://webshop.durite.co.uk/itm/Deutsch-Connectors/2-Way-Female-Deutsch-DT-Series-Connector/001142 |
 |
Part Number: Delphi 12162193 Typical usage: steering valves on John Deere https://mou.sr/3IsiF3L |
 |

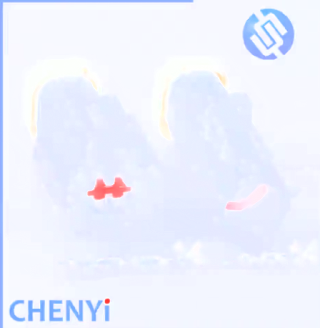

Part number: TE 282189-1 and 106462-1 JPT 2-pin connectors https://www.amazon.co.uk/Sealed-Waterproof-Female-Connector-Prewired/dp/B0DPL3DRDV/ref=sr_1_6?sr=8-6 |
 |

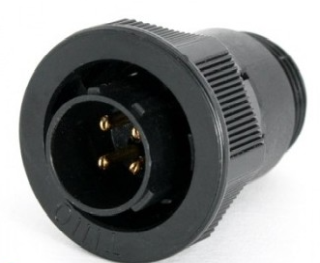

TT1110-P04 Fendt old-style ISOBUS/K-BUS etc connectors |
| Description | Sample |
|---|---|
 |
Part Number: try “3 pin tractor plug” Typical usage: powering your boards! https://www.amazon.co.uk/APUK-Tractor-Implement-Compatible-Amazone/dp/B07MXNW193 https://fr.aliexpress.com/item/1005003772953929.html |
 |
Part Number: TE Connectivity 344273-1 Typical usage: Case/NH WAS https://www.aliexpress.com/item/10000352442786.html |
| Description | Sample |
|---|---|
 |
For Danfoss valve https://www.aliexpress.com/item/10000360045685.html |
 |
For Case/NH WAS https://www.aliexpress.com/item/1005005231434626.html |
| Description | Sample |
|---|---|
 |
Part Number: TE Connectivity 1-967241-1 Typical usage: Claas ATP 009 steering modules https://www.te.com/usa-en/product-1-967241-1.html Pins https://www.digikey.co.uk/en/products/detail/te-connectivity-amp-connectors/927770-1/2054472 |
 |
Part Number: TE Connectivity 1-954426-1 Typical usage: Claas ATP 009 steering modules https://www.te.com/usa-en/product-1-965426-1.html Pins https://www.digikey.co.uk/en/products/detail/te-connectivity-amp-connectors/1-963749-1/4021582 |
| Description | Sample |
|---|---|
 |
Part Number: Amphenol CO16 Typical usage: 3pt-linkage sensor https://www.aliexpress.com/item/1005004315200768.html?gatewayAdapt=Msite2Pc See also: https://discourse.agopengps.com/t/massey-ferguson-7700-autosteer-ready/7001 |
| Description | Sample |
|---|---|
 |

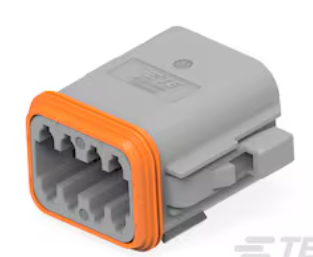

Part Number: Deutsch DT06-8S Typical usage: Keya Gen4 motor https://www.te.com/en/product-DT06-08SA.html Male pins (if required) are: https://www.te.com/en/product-0460-202-16141.html (1.6mm diameter) |
| Description | Sample |
|---|---|
 |
Part number: search “J1939 plug” Typical usage: ISOBUS/CANBUS connectors https://mou.sr/3ogaikK https://www.agritronixcorp.com/amphenol-tuchel-c016-7-terminal-plug-male-kit.html https://www.aliexpress.com/item/1005002988396207.html https://www.te.com/usa-en/product-HD16-9-1939S.html |
 |
Part number: search “J1939 plug” Note, typically green plugs are for 500kbps sockets. Black for 250 or lower. There is a subtle pin difference to the above with regard to the diameter of the top pin. https://mou.sr/45feOk9 https://www.te.com/usa-en/product-HD16-9-1939S-P080.html |
 |
Part Number: TE/AMP 206708-1 https://www.te.com/en/product-206708-1.html Typical usage: In-cab ISOBUS connectors |
 |
Part Number: AHDP06-24-91SN-WTA https://www.mouser.co.uk/ProductDetail/Amphenol-SINE-Systems/AHDP06-24-91SN-WTA?qs=MyNHzdoqoQLlEjSU%2Fu0c6Q%3D%3D Typical usage: Exterior ISOBUS connectors |
12-pin
Section titled “12-pin”| Description | Sample |
|---|---|
 |
Part number: Search Deutsch DTM06-12SA Pins: 0462-201-20141 Typical usage: Custom PCBs |
 |
Part number: Search TE 4-967627-1 Typical usage: Claas modem connector https://www.te.com/usa-en/product-1-964449-1.html https://www.te.com/en/product-5-968972-1.html |
16-pin
Section titled “16-pin”| Description | Sample |
|---|---|
 |
Part number: Search 1-1964449-1 Typical usage: Claas ATP 009 steering modules https://www.te.com/usa-en/product-1-964449-1.html Style is similar to 6-pin above |
 |
Part number: Search 206037-1 Typical usage: MF S-Series CANBUS diagnostic socket https://www.mouser.co.uk/ProductDetail/TE-Connectivity/206037-1?qs=mKNKSX85ZJf9q%2FMnuCzRZQ%3D%3D Pins https://www.te.com/en/product-66101-4.html |
19-pin
Section titled “19-pin”| Description | Sample |
|---|---|
 |

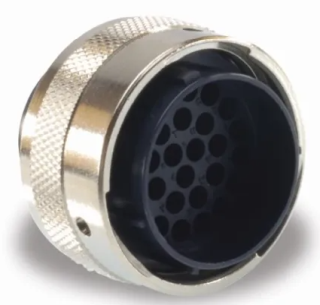

Deutz Fahr CANBUS Cannon Trident Ringlock Part Number TR1619PFS1NB https://www.digikey.co.uk/en/products/detail/itt-cannon-llc/TR1619PFS1NB/2487190 Pins are T2P16MC1LT https://www.aliexpress.com/item/1005006200968123.html https://www.aliexpress.com/item/1005004062210756.html |
23-pin
Section titled “23-pin”| Description | Sample |
|---|---|
 |
Part Number Ampseal 776087-1 Typical usage: For AgO boards https://www.te.com/usa-en/product-776087-1.html https://www.aliexpress.com/item/10000383252937.html |
 |
Pre-wired plugs for same: https://www.aliexpress.com/item/1005002638698250.html https://www.aliexpress.com/item/10000383252937.html |
25-pin
Section titled “25-pin”| Description | Sample |
|---|---|
 |
Part Number: 827050-1 Typical usage: Lexion “gun-cabinet” A9 connector https://uk.farnell.com/amp-te-connectivity/827050-1/automotive-conn-r-a-hdr-25pos/dp/3394413 |
40-pin
Section titled “40-pin”| Description | Sample |
|---|---|
 |
Part Number: DRC22-40PB Typical usage - Case/NH Trimble Nav Controller https://www.te.com/usa-en/product-DRC22-40PB.html Or, print your own here. These take TE Connectivity size 20 (1mm) contacts |
Random pins and sockets
Section titled “Random pins and sockets”Connector accessories
Section titled “Connector accessories”Below are 3d printable connector accessories. Use at your own risk.
https://www.thingiverse.com/thing:4670391 - 3-pin superseal backshell
https://www.thingiverse.com/thing:2135524 - cap for 2-pin ampseal/superseal
https://discourse.agopengps.com/t/case-ih-puma-230-autosteer-ready/5592/73
40-pin DRC connector
Various SuperSeals you can print out: https://cad.onshape.com/documents/337a36e88011d4509228a1b3/w/b5ec0133bb1899b23d31672b/e/46bc86a9c34d6419d811949c?renderMode=0&uiState=6468ebfb9c20896398f33cc8
