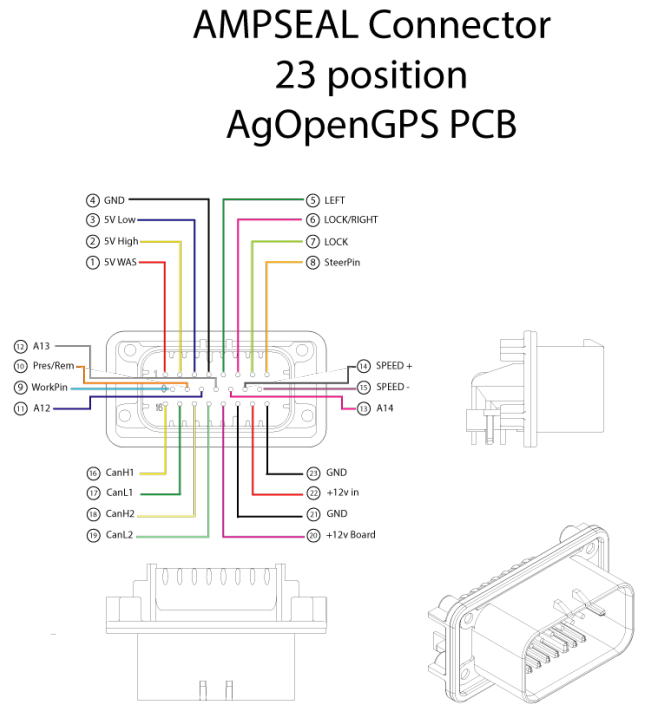

AIO Board Pinout
So, you’ll be needing some Ampseal connectors. Please note that ground pins of 4,21,23 are common and shared, thus they can be interchanged.
| Component | Pin | Description |
|---|---|---|
| Battery + | 22 | +12v in, use the appropriate fuse! |
| Battery - | 23 (4,21) | Ground |
| WAS 5V | 1 | 5V output for Wheel Angle Sensor |
| WAS GND | 4 (21,23) | Ground for WAS |
| WAS Low | 3 | Used for the Differential setup in AgOpenGPS |
| WAS High | 2 | Used for Single with GND and Differential with WAS Low |
| Steerswitch | 8 | Can be used with a switch or a button to have a physical button to enable / disable autosteer. Basically it allows to disable the steering. Has to be connected to ground. (4,21,23) |
| Workswitch | 9 | Can be used to turn sections on / off. Has to be connected to ground. (4,21,23) |
| Remote/Pressure | 10 | Used for pressure sensor in valves or encoder in motor. Ground: (4,21,23) |
| Left | 5 | Power output for motor / valves (Danfoss Signal) |
| Right/Lock | 6 | Power output for motor / valves (Lock was only available on AIO boards v2.5 and lower since V4 board lock is no more present) |
| Lock | 7 | Switched 12V output when autosteer is enabled. Can be used to activate the hydraulic valve through a relay or power Danfoss valve. |
| CanH1 | 16 | Can High for channel 1 |
| CanL1 | 17 | Can Low for channel 1 |
| Speed + | 14 | Output speed pulse + |
| Speed - | 15 | Output speed pulse - |
| A12 | 11 | !Use at your own risk! Unprotected connection to Teensy pin A12 |
| A13 | 12 | !Use at your own risk! Unprotected connection to Teensy pin A13 |
| A14 | 13 | !Use at your own risk! Unprotected connection to Teensy pin A14 |
| +12v out | 20 | 12V output (use it only for limited load maximum 1A) |
| V2 board: | ||
| CanH2 | 18 | Can High for channel 2 |
| CanL2 | 19 | Can Low for channel 2 |
| V4 board: | ||
| Cytron IN | 18 | V4 board: Cytron Input (up to 10A fuse) 12/24V |
| NC | 19 | NC |

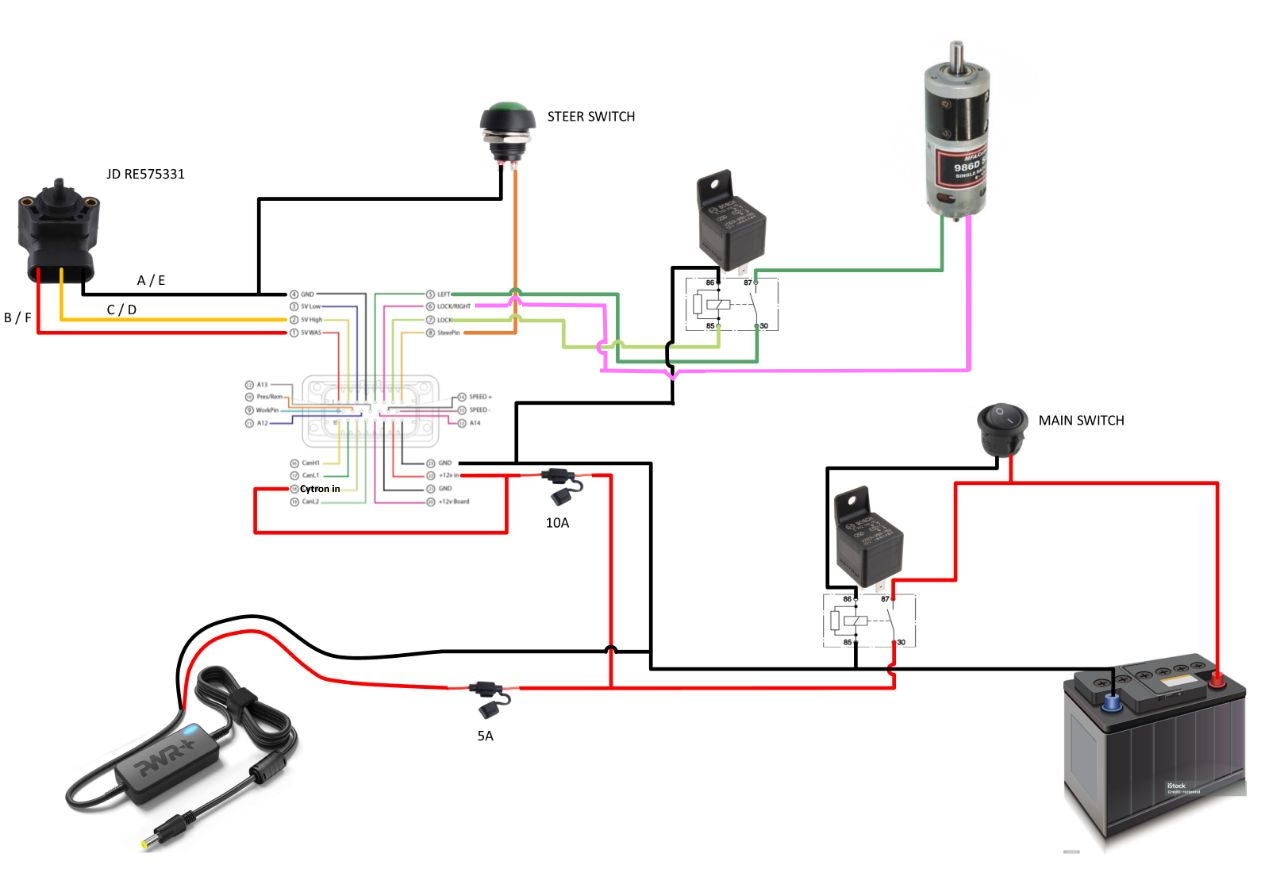

example for motor with external freewheel mod:
