KEYA CANBUS motor

You can use this as a guide for installation: https://discourse.agopengps.com/t/keya-canbus-motor-great-success-many-happy-etc/14174

https://youtu.be/ANboPyvSWBE

To order, the official link for the latest version of the steering wheel - direct from Keya themselves - is here.

Keya reference manual: Keya KY170DD01005-08G v2.4.pdf

If you’re in Europe you might want to check navisklep.pl They’ll supply with the 3 spoked wheel.

Links

The full kit: https://www.aliexpress.com/item/1005006800593966.html

Additional parts

Just a steering wheel, no motor: https://www.aliexpress.com/item/1005006723020417.html

Adapter type A: https://www.aliexpress.com/item/1005006590788935.html

Adapter type D: https://www.aliexpress.com/item/1005006590913968.html

Adapter type F: https://www.aliexpress.com/item/1005006591675066.html

Adapter type N: https://www.aliexpress.com/item/1005006591480010.html

Adapter type NH40: https://www.aliexpress.com/item/1005006591353337.html

You need to specify when ordering which steering boss you require (and let them know if you require additional ones). Pay attention to the aliexpress link, the “View more” bit will list all the adapter types. NOTE: this list below might be out of date as more models are added, so look for this chart on the aliexpress link!!

Also, there is a newer motor with 12-pin connection but as far as I can see, it doesn’t offer much over the 7-pin one at this time, we’ll update this document when it’s available.

Replacement connectors: https://www.aliexpress.com/item/1005002498869200.html

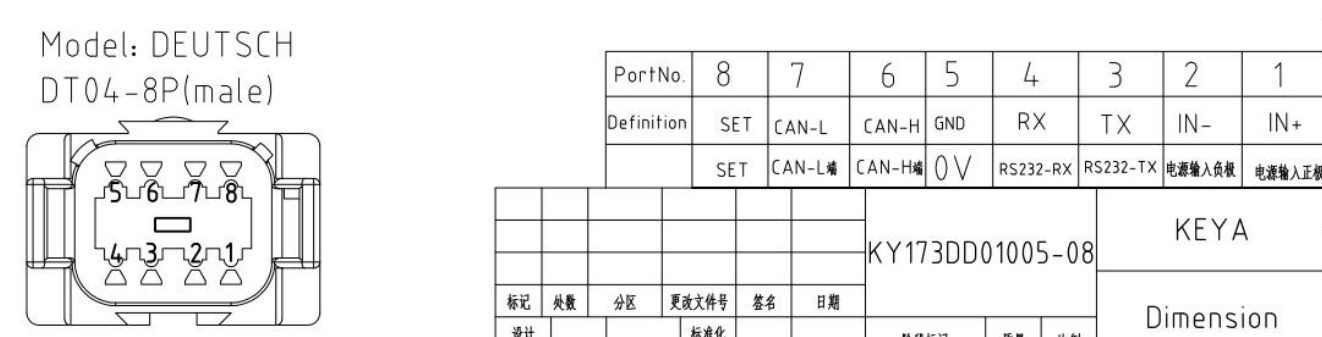

Connections:

You’ll be powering 12V to pin 1, and GND to pin2 - and don’t power this through the AOG board! Put it on its own supply with a big huge “OFF!” switch for safety.

Pin 6 (CANH) goes to pin 16 on ampseal and pin 7 (CANL) goes to pin 17.

You’ll need a modified firmware and while the hope is that this eventually goes to mainstream, at the moment it’s still considered as in-testing, so I haven’t submitted a PR to the main branch as yet.

You can find my modified firmware here but make life easier by using AOG-Config-O-Matic!

Motor types

Cables

7-pin https://www.aliexpress.com/item/1005007135464376.html

12-pin https://www.aliexpress.com/item/1005007144678100.html

Known fittings

Note - you should ALWAYS measure the diameter and count the splines yourself. This is for reference only.
